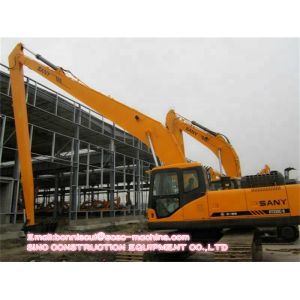

    SY335H Hydraulic Crawler Excavator

    Ask Lasest Price
    Brand Name : SANY
    Model Number : SY335H
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 set /sets per month
    Delivery Time : 30-3 work days
    • Product Details
    • Company Profile

    SY335H Hydraulic Crawler Excavator

    Hydraulic Crawler Excavator Digger Excavator 35 ton Crawler Excavator SY335H


    SY335C medium excavator features customized engine, auto deceleration system, strengthened structure, making it a efficient and robust machine for medium-sized earth and stone work.

    High Efficiency & Low Consumption

    Isuzu Engine Customized for SANY

    With a dual-pump, dual-circuit constant power control system, the Isuzu engine outputs a continuously strong operating force. Optimized performance of the engine reduces power loss.

    Auto Deceleration System

    Auto deceleration of SY335C 33.5 ton excavator reduces fuel consumption by 5-10%. When an operation stops for 3.5 seconds, the engine speed drops automatically to idle level and maintains the idling state.


    Specification of Construction Road Roller XD143S Double Drum Vibration Roller Earth Compactor Machine


    Engine
    Engine modelAL-6HK1X-S
    Rated power210/1900kW/rpm
    Max.torque1080N.m.
    Displacement7.79L
    Operation Range
    Operating weight35500kg
    Max. digging height10100mm
    Max. dumping height7025mm
    Max. digging depth7410mm
    Max. vertical digging depth6170mm
    Max. digging reach11050mm
    Min. swing radius4450mm
    Height at min.swing radius8500mm
    Dimensions
    Transport length11100mm
    Transport width3290mm
    Transport height3600mm
    Upper width3145mm
    Cab height3085mm
    Tail swing radius3300mm
    Min. ground clearance550mm
    Undercarriage/Working Device
    Std. track shoe width700mm
    Bucket capacity1.5 m³
    Track shoes(per side)49
    Upper rollers2
    Lower rollers9
    Track gauge2590mm
    Track length5080mm
    Arm length3.2m
    Performance
    Travel speed5.2/3.4km/h
    Swing speed9.5rpm
    Gradeability70%/35°
    Ground pressure59.2kPa
    Tractive force274kN
    Bucket digging force220kN
    Arm digging force165kN
    Service Refill Capacities
    Fuel tank540L
    Hyd tank380L
    Engine oil29.6L
    Engine coolant11L
    Hydraulic System
    Boom cylinder bore x stroke140×1480mm
    Arm cylinder bore x stroke170×1628mm
    Bucket cylinder bore x stroke140×1285mm

    Our services


    1. All the machines will be full tested before shipment; All products have one year warranty and lifetime maintenance serve (collect maintenance after one year)
    2. 24 Hours technical support, email, telephone or video online
    3. User-friendly English manual for machine using and maintaining
    4.Several sets wearing parts will be free for you.


    FAQ


    1.Q:Do you have ISO certificate ?

    A : Yes , we have ,pls contact us to get our certifications.

    2.Q:How about the delivery time?

    A: It depends on the style of truck ,normally around 30 working days

    3.Q : How about shipping ?

    A :Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .

    4. Q: How do you control the quality of product?

    A :our workers are well trained. Our very product under goes a scrutinizing inspection process.

    5. Q: How about your product After-sales service system?

    A :Our main export country have accepted after-sales service , some of country used the third department service.

    6.Q: Do you accept Custom orders? What’s is your MOQ order?

    A :Yes, we do, our MOQ is 1 set.

    7.Q: What’s the payment terms?

    A : By T/T or L/C at sight
