| Brand Name : | Sinotruk |
| Model Number : | ZZ1257N4647A |
| Certification : | ISO CCC |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1000 units per month |
| Delivery Time : | Within 20 work days after receive order |

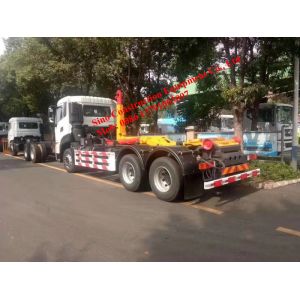

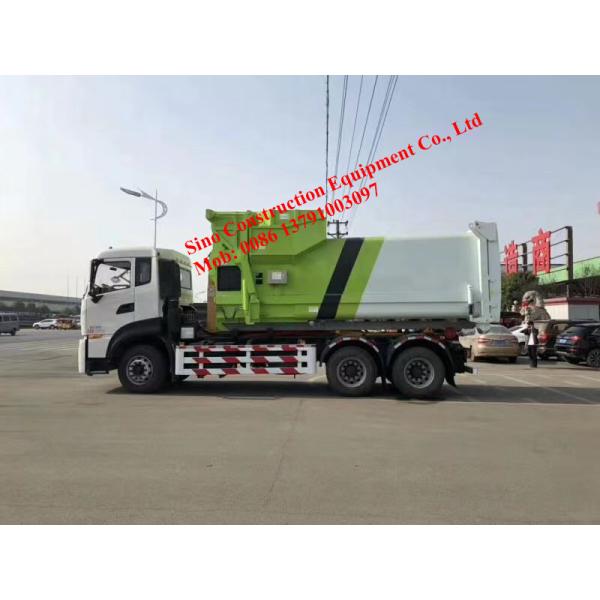

Sinotruk Howo Special Purpose Truck 16m3 Hook-Arm Garbage Truck 336hp Euro III
Advantages of Sinotruk Howo Special Purpose Truck 16m3 Hook-Arm Garbage Truck 336hp Euro III
1. Hook-arm garbage trucks are applicable to the national general garbage hopper, with hydraulic operation and self-unloading function. The garbage hopper can be hoisted up and down. One working cycle time: 60S
2. The truck uses hydraulic control system to complete the lifting and dumping functions of the garbage bin, which reduces the labor intensity of workers and improves the working environment.
3. It adopts the national standard thickness WISCO high-quality carbon plate, 3 sides and 4 skeleton cars. The skeleton cars are designed and manufactured according to the outer frame type with the highest pressure resistance. The longitudinal and transverse beam skeletons and the roof skeleton are all made of high-quality steel materials by pressing and drawing. Equipped with hydraulic device, the driver can complete the loading and unloading of garbage bins in the cab]
4. The main feature of this vehicle is that the bucket is separated from the vehicle body, which can realize the joint operation of one vehicle and multiple buckets, and cyclic transportation, which fully improves the transportation capacity of the vehicle, and is particularly suitable for short-distance transportation, such as the sanitation department for urban garbage. Cleaning, transportation, etc.
5. The spraying color and shape of the garbage hopper can be sprayed according to customer requirements.
Technical specification of Sinotruk Howo Special Purpose Truck 16m3 Hook-Arm Garbage Truck 336hp Euro III
| 22m3 Hook-Arm Garbage Truck 336hp Euro III | |||
| Product name | 16m3 Hook-Arm Garbage Truck | size(mm): | 8360×2500×3030(mm) |
| Total weight (kg) | 25000(kg) | Approach/departure angle (°) | 20/10(°) |
| Rated weight (kg) | 13400,13465(kg) | Front/rear suspension (mm) | 1460/1200,1460/1250(mm) |
| Curb weight(kg) | 11405(kg) | Maximum speed (km/h) | 80(km/h) |
| Axle load: | 7000/18000(double axle) | ||
| Chassis | |||
| Chassis model | ZZ1257N4647A | Number of axes | 3 |
| Wheelbase (mm) | 4350+1300 | Front wheelbase (mm) | 1986,2040(mm) |
| Cab | HW76, with one sleeper | Rear wheelbase (mm) | 1860/1860(mm) |
| Number of tires | 10 | Number of springs | 8/9,8/10,9/10 |
| Tire specifications | 12.00R20 | ||
| Engine | |||
| Model | Brand | Displacement(ml) | Power(hp) |
| WD615.69 | CNHTC | 9726 | 336 |





Packing & Delivery:
Nude package.
This model truck crane shipped by roro or bulk ship.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal and use the machine.
* Engineers available to service machinery overseas.
|
