| Brand Name : | SCEC |
| Model Number : | SCEC-60 |
| Certification : | ISO CCC |
| Price : | $10000 |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1000 units each month |
| Delivery Time : | Within 30-35 work days after receive order |

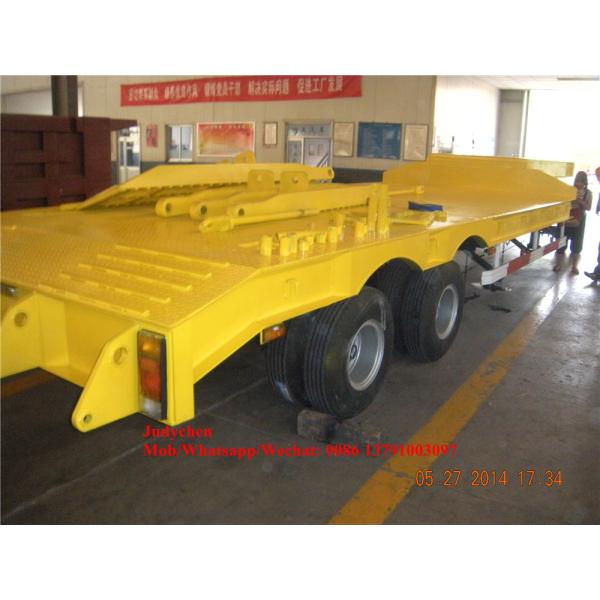

3 Axles Low Bed Full Trailers Load 50-60t For Heavy machinery Transport
| Suspension | America type mechanical Suspension | |
| Wheel | 11:00 R20 | |
| Turntable | Diameter is 1100mm | |
| Traction hook | DN50 | |

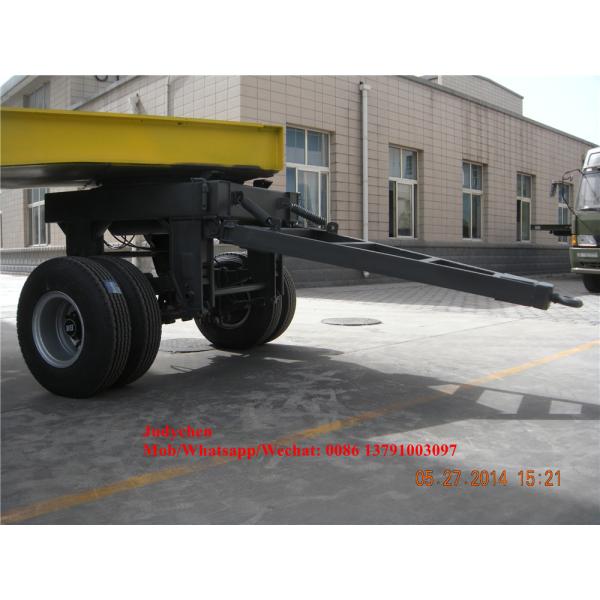

| Traction bar | Length is 1.4m | |
| Dimensions(LxWxH) | 7500-18000×2500×1500mm | |
| Steel Spring | 10/10 pieces per axles | |
| Tire: | ||
| The material of Main beam | The height of the beam is420mm,upper plate is 12mm*140,down plate is 12*140mm,middle plate is 6mm(strictly).made of Q345 | |
| Platform plate | 3mm Diamond Plate | |

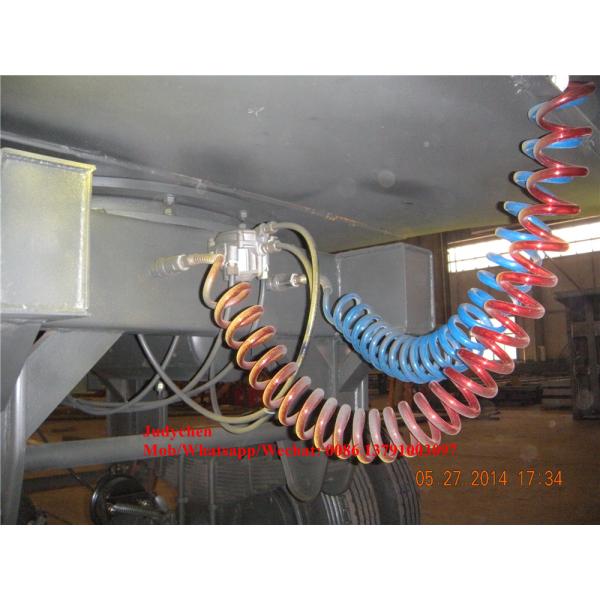

| Brake: | WABCO VALVE | |
| Brake | Kemi Brand of China | |
| Brake Chamber | TWO double and two single chamber( TKL brand ) | |
| ABS system | with | |
| Electrical: | ||
| Voltage | 24V | |
| Receptacle | 7 ways(7 wire harness) | |
| Light color: | (LED light) | |
| Side marker lamp | Orange | |
| Rear lamp | Red | |
| Turn signal lamp | Orange | |
| Miscellaneous: | ||
| Painting | Can be choose freely | |
| Marking | According to the requirement of the buyer | |
| Side Guard | According to the requirement of the buyer | |
| Tools box | One pieces or According to the buyer(1m length) | |
| Water tank | The size can be choose freely. | |







|
